Description
AXIOM+ 12″ Touch
The Raymarine AXIOM+ 12 features the new and significantly brighter HydroTough™ display, more internal memory, and a faster quad-core processor. Thanks to the new LightHouse Dartmouth, you benefit from day and night modes, as well as support for Raymarine LightHouse charts.

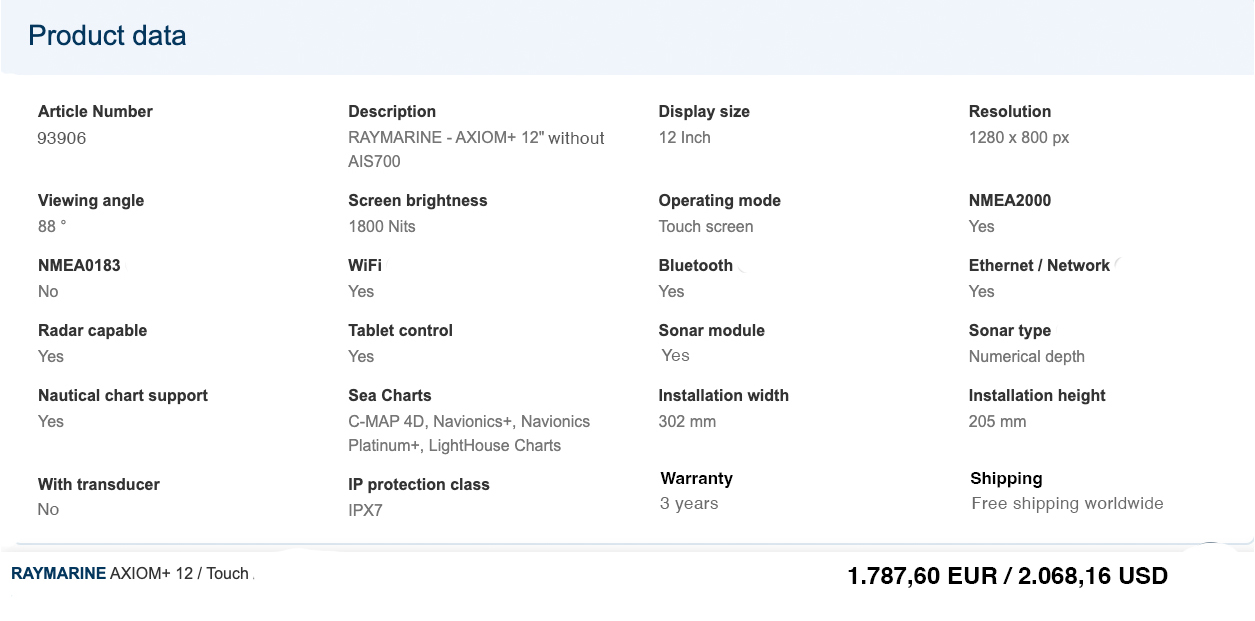

Technical Specifications
- Display Size
12″ - Display Resolution
1280 x 800 - Display Type
Multitouch with HydroTough (durable coating) - Brightness
1800 nits - Viewing Angle
88° top, bottom, left, right - Voltage
12 V DC (8 – 16 V DC) - Power Consumption
15.48 W - Ethernet
Yes, 1x port - NMEA2000
Yes, 1x port - NMEA0183
No - SeaTalkNG
Adapter cable required - USB
1x USB microAB - WiFi
Yes - Bluetooth 4.0
Yes - GPS
Integrated (10 Hz, 28 channels) - GPS
GLONASS/Galileo/Beidou - Sonar
Yes - Radar
Compatible with Quantum, Digital, HD Color/Super HD Color and Magnum - Radar Antennas
- AIS
Yes, via NMEA2000 - Nautical Charts
Navionics, C-MAP, and Lighthouse - Chart Slot
1x - Autopilot Control
Evolution Autopilot - Thermal Imaging
FLIR AX8, M232, M300 Series, M400, M500 - Video/Camera
Compatible with CAM210IP and CAM220IP (max. 10 cameras) - Operating Temperature
-25 to +55 °C - Storage Temperature
-30 to +70 °C - Waterproof
IPX6 / IPX7 - Dimensions
314 x 217 x 77 mm - Weight
2.72 kg
Scope of Delivery
Multifunction Display, Mounting Bracket, Knurled Screws, Sun Cover, Gaskets, Threaded Screws, Power and Data Cables, and Documentation
